PC Diffuser Sheet

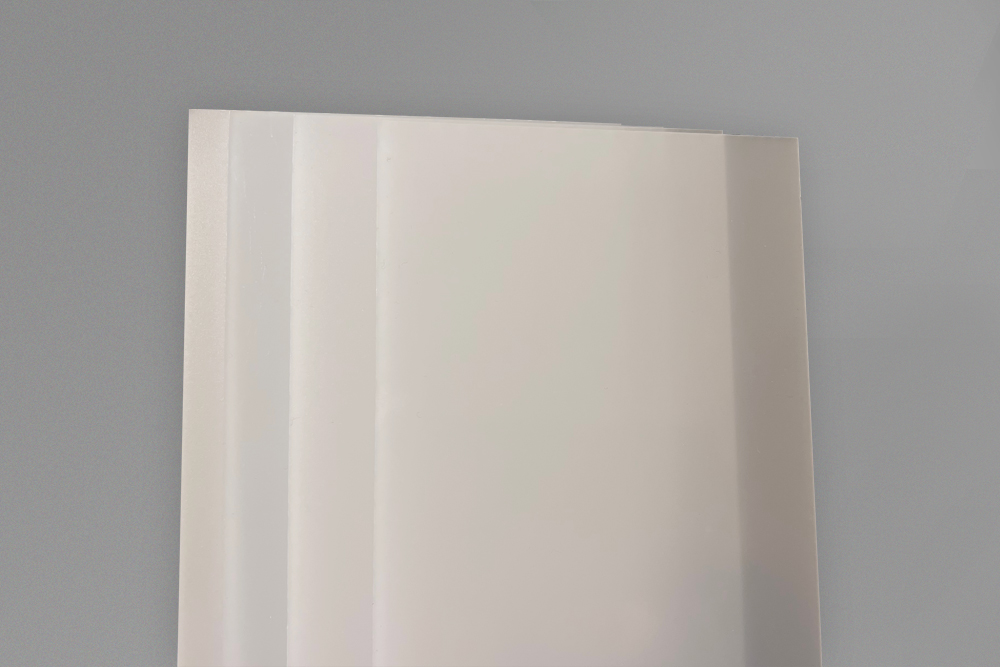

Polycarbonate PC Diffuser Sheet manufacturer in India produces high-quality PC diffuser sheets made from durable and strong polycarbonate material. These sheets are ideal for both indoor and outdoor LED lighting uses due to their excellent light diffusion, impact resistance, and UV stability, with superior optical clarity and long-lasting performance.

Features:

  • Density: 1.19 g/cm3
  • Excellent Mechanical Properties
  • High Impact Resistance
  • Flame Retardant : UL 94 V-0 AT 1.5 mm
  • Good Light Transmission
  • Poor UV stability (UV stabilized grades available)
  • Thermoformable

Examples of Grades:

Part Number Light Transmittance ±2% Thickness (mm)
C-1270 70% 1.2
C-1570 70% 1.5
C-1575 V0 75% 1.5
  • Surface Texture: Glossy / Satin / Matt / Embossed
  • Thickness Range: 0.8 to 4.0 mm
  • Light Transmission Range: 70 to 80%
  • FR Grades for Railways: PC UL 94 V0 and HL-3 R4

(Thickness and Light Transmission can be customized as per the application requirement.)

Applications:

  • Railways
  • Indoor and Outdoor Lighting
  • Lighting for Clean Rooms
  • LED Panel light
  • Office lighting
  • Down lights
  • Landscape lighting luminaries
  • Consumer luminaries
  • Industrial lighting luminaries
  • Displays, light box, signage

Data sheets upon request
