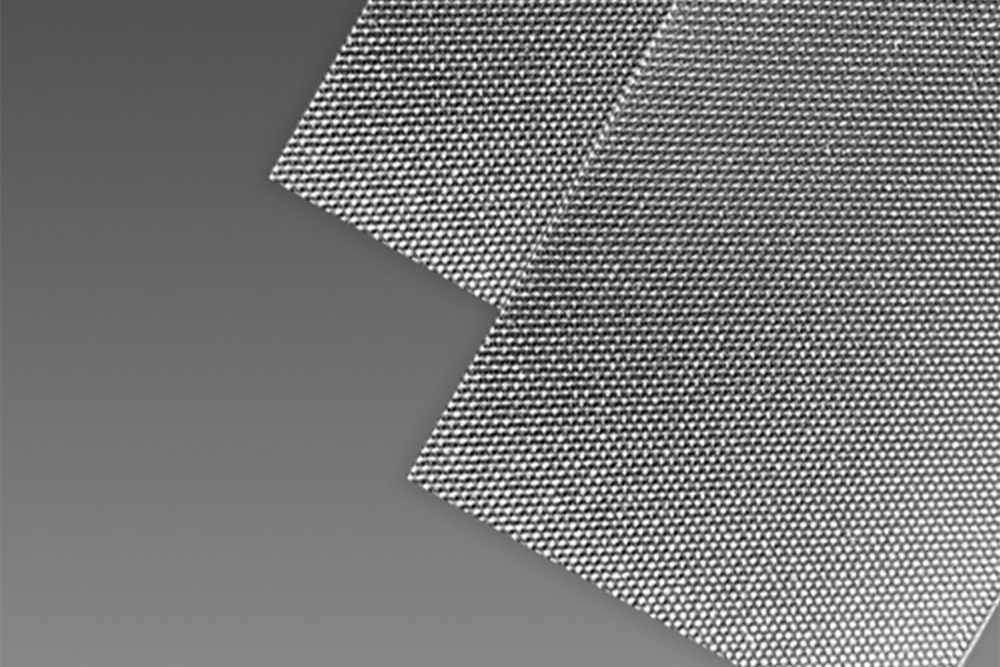

PS Prismatic Sheet

PS Prismatic Sheet

PS (Polystyrene) Prismatic Sheets are optical sheets that are specifically used to give maximum diffusion, light uniformity and minimum beam. They hold a prismatic surface finish that diffuses light efficiently, thereby making them ideal for use in a variety of lighting applications. They are optically clear, light in weight, and cost-effective, which means making them an ideal choice for commercial and domestic lighting applications.

Available Grades:

  • Light Transmission: 75% - 85% (Dependent on prismatic design and thickness)
  • Standard Thickness Options: 1.0mm, 1.5mm, 2.0mm (Other thickness available on request).
  • Surface Texture: Prismatic Pattern for Enhanced Light Diffusion.

Applications:

  • Density: ~1.05 g/cm³
  • High Light Transmission: Provides bright and even lighting.
  • Prismatic Surface Design: Minimizes glare and maximizes light diffusion.
  • Good Impact Resistance: Resists normal wear and minor impacts.
  • Lightweight & Easy to Handle: Allows for easy installation.
  • Cost-Effective Alternative: Provides cost-effective alternative to acrylic and polycarbonate.
  • Suitable for Indoor Applications: Suitable for all forms of lighting and display applications.
  • Customizable Thickness & Sizes: Can be made available in various sizes as per project requirements.

Applications:

  • LED Panel Lights - Increases brightness with even light diffusion.
  • Office & Commercial Lighting - Minimizes glare for comfortable lighting.
  • Retail & Display Lighting - Provides vivid and well-lit displays.
  • Ceiling & Troffer Fixtures - Provides even light distribution for indoor areas.
  • Signage & Light Boxes - Offers a diffused and bright light effect.
  • Decorative & Architectural Lighting - Provides a contemporary look to lighting designs.

PS Prismatic Sheets are a cost-effective and efficient lighting solution, providing maximum light control, increased diffusion, and beam reduction. Their flexibility makes them suitable for commercial, residential, and industrial lighting uses.
